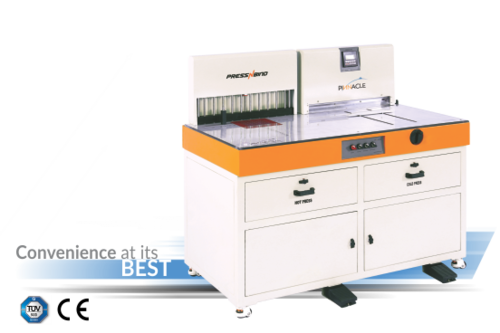

PRESS N BIND

PRESS N BIND
PRESS N BIND
Product Code : PNB
Product Description

Press N Bind is very economical but an ideal solution for achieving elegant binding. This machine takes care of creasing and pasting operations with utmost precision. Supported with hot and cold press systems, Press N Bind helps produce a perfectly pasted book with maximum flat opening. This machine operates only on single sided prints.
Press N Bind handles photo sheets and hot melt gumming sheets with equal perfection. This machine works at adequate temperature to provide faster outputs. It is increasingly used for exclusive photo books.

KEY FEATURES

  • Hot and Cold processes are used to render uniform pressure at desired temperature and achieve better strength of the photobook.
  • Creasing groove can be set as per the paper thickness.
  • A Vacuum Bed holds the Prints, to avoid any displacements of the prints.
  • Digital display to set the creasing distance using a knob.
  • Digital Controller to set the processes.

DIMENSION





MAX. WORK SIZEMIN. WORK SIZEPOWER CONSUMPTIONPOWER SUPPLYWORKING DIMENSIONWEIGHT (approx)
20″ X 20″ X 2.5″6″ X 6″ X 2.5″2 KW220  V  AC55″ x 31” x 52”325  Kg.



PNEUMATIC CONNECTION IS REQUIRED
