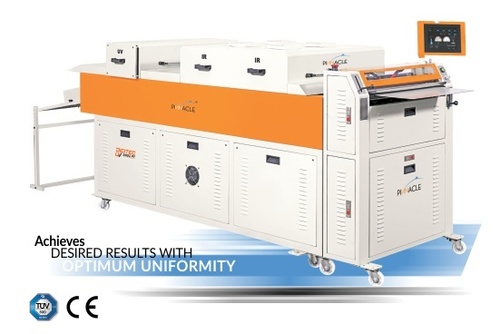

DIGITEC UV AT SERIES 1501, 2001, 2501

DIGITEC UV AT SERIES 1501, 2001, 2501
DIGITEC UV AT SERIES 1501, 2001, 2501
Product Code : DG
Product Specifications
  • Product Type
  • UV Coating Machine
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • As per requirement Per Day
  • Delivery Time
  • 15 Days
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

The Digitec UV AT series machine by Pinnacle is the leading edge of technology. It is a fully automatic machine offering coating and curing with utmost precision, accuracy and consistency.
This machine features separate coating and curing units for coating prints with different chemicals and a UV & an IR chamber for thorough curing. It is specially designed to meet the specific market needs and does its job efficiently, yielding uniform coating.
The Digitec UV AT series machine is suitable for all sorts of Offset and Digital prints like HP Indigo, Konica Minolta, Noritsu, Ricoh, Canon, Xerox, Kodak, Photo papers and more.

FULLY AUTOMISED  |  TOUCH PANEL  |  HIGH SPEED  |  FULL UV COATING & CURING MACHINE WITH

KEY FEATURES

  • Single click operation.
  • User friendly single screen GUI.
  • Page counting and total calculator.
  • Online voltage current measurement.
  • 7.9 inch touch screen display.
  • Chemical level measurement and warning on display.
  • Push to clean facility for cleaning rollers in machine stand-by position.
  • Two separate chemical tanks and channels for two different types of chemical.
  • Easy roller changing mechanism for obtaining varied creative textures.
  • Mechanism for controlling coating thickness.
  • Emergency switches for manual override on the machine for high safety, optional feature.
  • Page blockage detections Auto Shutdow.

ADDITIONAL OPTIONS

  • Interface with various printer.
  • Power usage measurement.
  • IR/UV lamp usage measurement.

 DIMENSION

MODEL NAMEMAX. WORK SIZEPOWER CONSUMPTIONPOWER SUPPLYWORKING DIMENSIONWEIGHT (approx)
Digitec UV 1501 AT15″5.5 kw230 V AC or 3PH +N146″ x 28” x 47”260 Kg.
Digitec UV 2001 AT20″7 kw3PH +N146″ x 33” x 47”320 Kg.
Digitec UV 2501 AT25″8 kw3PH +N146″ x 38” x 47”390 Kg.
MIN. WORK SIZE:  6″ x 6″PAPER THICKNESS:  160 to 400 GSMSPEED:  2500 Prints/Hour
